When drill the oil well ,they always will use drilling mud to balance pressure between outside and inside of well to prevent the well collapse, drilling mud also can cool rig and provide the work efficiency. GN solids control was a China factory that main manufacture solids control equipment to process the drilling mud, separate out the solids in drilling mud and recycle it. As along as the development of drilling technology. oil base drilling mud is becoming mode and mode widely application. It is good for well drilling , but this kind mud is also expensive and high pollution ,because the liquid is diesel or curd oil. And also the separated drill cutting with high pollution.

GN vertical cutting dryer and 14 inch centrifuge were specially designed for oil base drill cutting. The drill cutting was separated from solids control equipment such as shale shaker, mud cleaner, it is still very wet. This kind drill cutting can directly feed into GN vertical cutting dryer. Under the 1000 G force, the involved oil liquid will be separated out ,and be collected in one tank. The discharged solids is very dryer, it is very easy to transport to further process . However, the oil liquid need to feed into 14 inch centrifuge for clarify. After GN centrifuge treatment , the recycled mud is clean enough for drilling again.

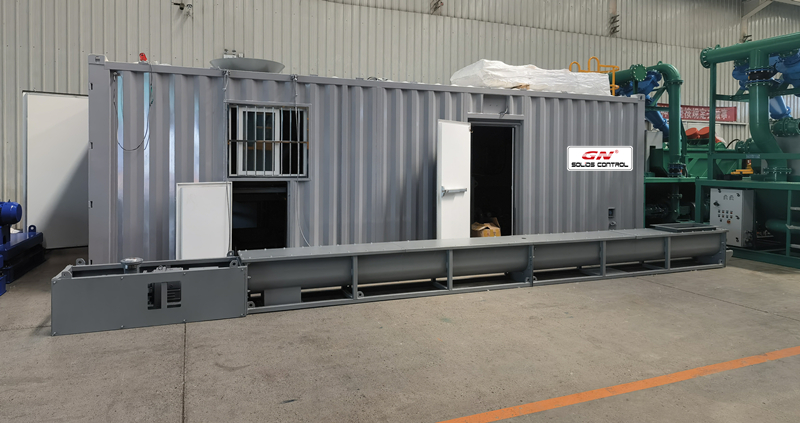

Last week we delivery one set drill cutting system to abroad. Since the drilling job site was located in very cold area . GN design the insulation container, all equipment was load into container for easily transportation and warm. This design is very popular in Russia and some Canada countries. All system was automatic. Material will be transfer between machine by the screw conveyor and PUMP. The auxiliary equipment were also manufactured by GN. We are good at provided customized  solution to client, if you have demanded, welcome to contact us.
