last week, we shipped 3 units 1500GPM mud cleaner to China drilling company. As one of the top supplier of solids control equipment, We built long term cooperation with many China top oil gas company such as CNPC, Sinopec. Good quality and service are the main factor to help GN get a good reputation in China marker and also global. Actually there are about 3/5 of sales from abroad, and we exported to more than 76 countries in the world. At most times ,GN can provide the equipment with the client required standard ,such as CE for Europe , IECex, ATEX for explosion proof and also API Q1 for oil gas industry.

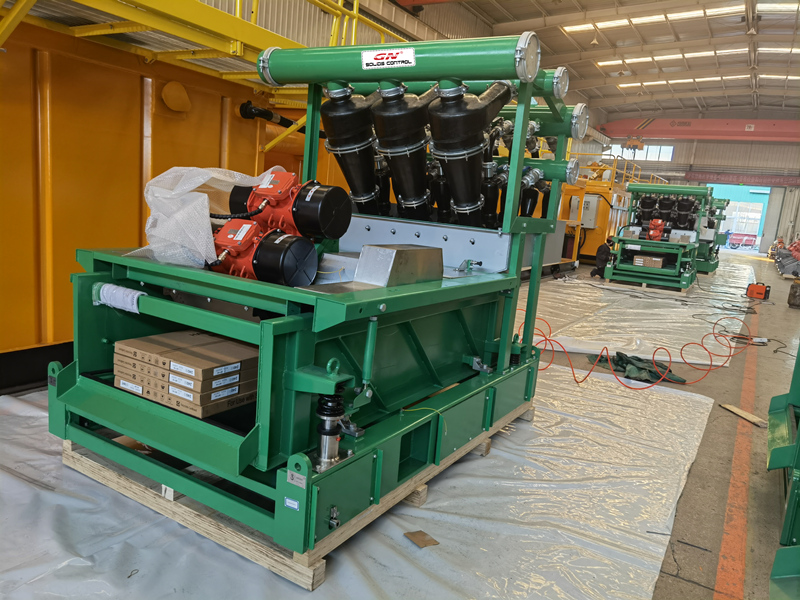

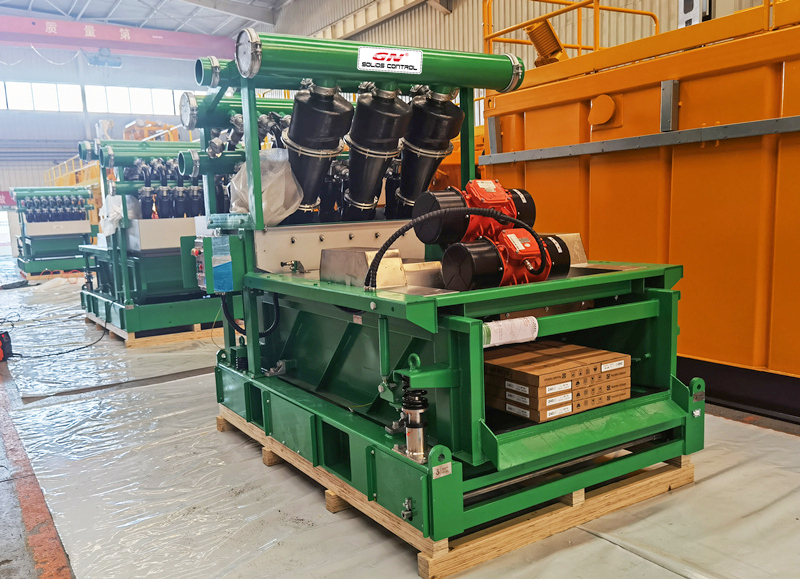

Solids control equipment is our main business, we have more than 15 years manufacture experience. Shale shaker and mud clean are the most feature products for GN.The mud cleaner we delivered last week , which is the GNLW-594F2S12N model. The bottom shaker use the same size screen with Mongoose. 4 pieces for 1 set. Except this, it also mounted 12 pieces 4inch hydrocyclone and 2 pieces 10 inch hydrocyclone. 10 inch hydrocyclone was used to separate out the particle size higher than 40 micron. and then the slurry will down on the bottom shaker, and then go through shaker screen ,drop into a mud tank. The collected liquid will be pumped to 4 inch hydrocyclone and remove out the solids bigger than 40 micron. In most drilling project, the mud is clean enough for reuse after treatment by 4 inch hydrocyclone. However, if client require more clean mud, we also can provide Decanter centrifuge for the last step treatment.

All these design of shale shaker considered the heavy work duty. The stronger vibration beam, and shaker box. Especially the shaker screen, we use the special material to cover the metal frame. It is not only comply with API RP13C standard ,but also have longer lifetime than normal screen.

If you have demand on solids control equipment , welcome to contact us .
